From microchips to moon rocks: how the world depends on counting atoms

By Christ Jeynes - Senior researcher, University of Surrey

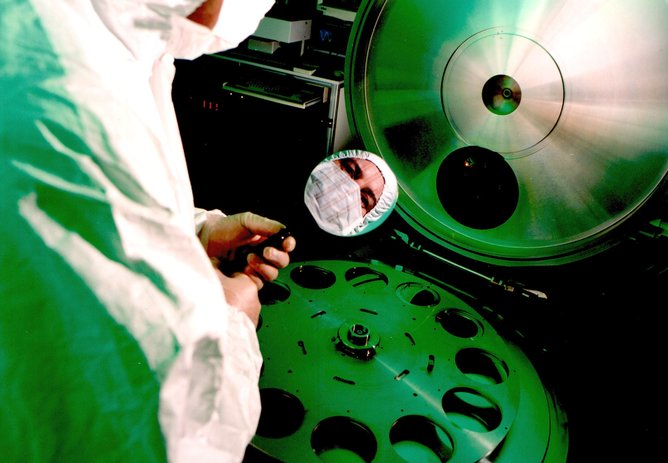

Adrian Cansell loading a 100mm silicon wafer into a 200 kV ion implanter. – Image Credit: University of Surrey Ion Beam Centre, Author provided

Adrian Cansell loading a 100mm silicon wafer into a 200 kV ion implanter. – Image Credit: University of Surrey Ion Beam Centre, Author provided

What do ancient artefacts, fragments from celestial bodies, microchips and gunshot residue have in common? Their innermost secrets can all be unveiled with the same method. Rutherford backscattering spectrometry(RBS) uses a beam of charged particles to analyse their composition by counting the atoms in thin-film materials.

But now RBS is even better, having been proven accurate to the satisfaction of the metrologists and the University of Surrey now has the first laboratory to achieve accreditation for accurate RBS. This may sound like a small, technical step, but it is a leap that could have huge returns.

Reliable atom counting

Lord Rutherford was the first to explain, in 1911, that atoms are made up of heavy nuclei surrounded by orbiting electrons. He was amazed to see alpha particles (the nuclues of a helum atom) bounce backwards (“backscattering”) after reacting with the electrons in an ultra-thin gold foils. But he also solved the physics, finding an elegant formula for how the alphas scatter. Essentially, RBS counts how many atoms of the various elements are present in a thin-film.

RBS is now a standard tool for chemical analysis. For example, it was famously used by Anthony Turkevich in 1967 to analyse the composition of rocks from the moon during the Surveyor V mission. RBS is always accompanied by particle-induced X-ray emission, that is, X-rays characteristic of the elements in the target. RBS plus this X-ray emission is known as ion beam analysis.

Turkevich claimed 1% accuracy for his RBS measurements. So if he measured a thin-film thickness of 100nm (nanometres), his uncertainty would be less than 1nm. However, in the 50 years since Turkevich’s claim only very careful analysts did better than 5%. But now we know how to reliably measure accurately.

Ion beam analysis was also used recently to discover organic “fossils” in remnants of meteorite impacts and to determine the painting techniques of famous artists. At the Louvre Museum in Paris they have an accelerator laboratory dedicated to ion beam analysis of art treasures.

‘Doping’ microchips

The electronic magic going on in the ultra-thin surface layers of microchips is at the heart of nearly all the technology we see around us today. An important part of it is the process of doping, a way to directly manipulate the electronic behaviour of a material by implanting ions (atoms or molecules that have lost one or more of their electrons) into it.

An ion implanter typically consists of an ion source, an accelerator that boosts the ions' energy and a target chamber where the ions are implanted into the material. Implanting a few arsenic atoms here and a few boron atoms there into a silicon wafer forms the array of transistors that become the brains of “silicon chips”.

Ion implantation is one of the basic technologies that underlie the huge semiconductor industry. This is because ion implantation is very controllable (electrical current is easy to measure): essential since all the millions of transistors have to work the same in all the millions of chips.

It is easy to see that a basic technology needs to have good independent methods of double-checking: counting atoms accurately is important but it’s hard to do. Now we can double-check the implanted ions counted in using accurate RBS.

Non-destructive analysis

We have demonstrated that RBS qualifies as a primary direct reference method. This is the way metrologists talk about the really accurate measurement methods that everything else depends on. There are not that many primary reference methods: the link lists “gravimetry”, “coulometry” and “isotope-dilution mass spectrometry”, but none of these are methods that are non-destructive like RBS: Rutherford’s gold foil remained unscathed.

View from the Window at Le Gras: heliograph on pewter plates by Joseph Niépce (1827) – Image Credit: Wikimedia Commons

View from the Window at Le Gras: heliograph on pewter plates by Joseph Niépce (1827) – Image Credit: Wikimedia Commons

A non-destructive measurement of a sample is important as it allows further measurements to be made – or you may simply want your sample back. An interesting example of a type of analysis that has only fairly recently become feasible was done on one of the treasures of the Louvre. The first ever photograph was taken by Joseph Niépce in 1827 (pictured above), but it had started to get worrying signs of corrosion. By handling the RBS and PIXE data together we were able to find out how the corrosion was occurring: tin was oxidising to a depth of about 12 microns and causing the problem.

Whenever scientists improve techniques, new things (such as photonic devices) or new understandings (of processes in the sun for example) change the world. These surprisingly different examples depended on accurate RBS, and the future will certainly see applications in many different fields.
