How does Wi-Fi work? An electrical engineer explains

Since its relatively humble beginnings in 1998, when it was first introduced to consumers, Wi-Fi has become a familiar name in almost every household, office building, or even coffee place. Although the renowned family of wireless network protocols has been with us consumers for well over twenty years, it remains an invisible enigma to many of us to this day.

In this article Bhaskar Krishnamachari, Professor of Electrical Engineering at the University of Southern California, explains what it is and how it actually works.

By Bhaskar Krishnamachari

Almost all of us use it on a daily basis, but few know how it actually works - Image Credit: RawPixel via Shutterstock / HDR tune by Universal-Sci

Almost all of us use it on a daily basis, but few know how it actually works - Image Credit: RawPixel via Shutterstock / HDR tune by Universal-Sci

Though you can’t see them, radio waves are all around you all the time, carrying information. For most people, some of those radio waves are Wi-Fi signals. Wi-Fi is the catchy name an industry alliance came up with to market devices that transmit large amounts of data over short distances using radio waves. The letters don’t stand for anything.

Wi-Fi, like broadcast radio and cellular telephone signals, is based on scientific discoveries dating back to the late 19th century. When electrons moving through a wire are made to alternate directions periodically, something magical happens. Electrons in another wire, located at a distance, start to move up and down in sync, as though they were telepathically connected.

This phenomenon was first observed by Heinrich Hertz in 1887, confirming a mathematical theory proposed by James Clerk Maxwell in 1864. Maxwell’s elegant theory explains how the alternating current in the first wire causes a “radio wave” of alternating electrical and magnetic fields to radiate out in all directions at the speed of light. The wave, in turn, causes an alternating current in the second wire.

The electromagnetic spectrum includes visible light, which alternates at a much higher frequency than radio waves. There is a mystery to ponder here: Human bodies have evolved to see light but not radio waves.

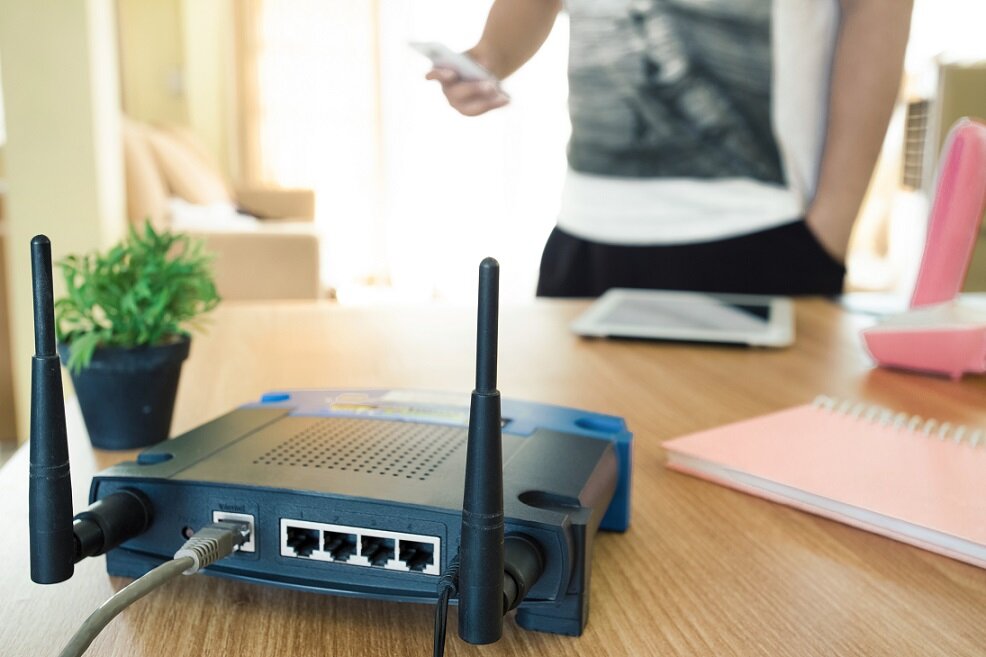

These tiny antennas transmit radio waves throughout an apartment-size area - Image Credit: Casezy idea via Shutterstock / HDR tune by Universal-Sci

These tiny antennas transmit radio waves throughout an apartment-size area - Image Credit: Casezy idea via Shutterstock / HDR tune by Universal-Sci

Wireless 0’s and 1’s

Traditional AM/FM radio and TV broadcasts communicate information through analog or continuous signals. Wi-Fi communicates information digitally, as discrete values – the 0’s and 1’s of binary data. This lets mobile devices easily send a wide range of data types, including video, image, speech, and text. Digitally formatted data is also easier to compress for faster download, to encode for preventing errors, and to encrypt for ensuring confidentiality.

When you search for something online, data from your Wi-Fi device is first communicated over radio waves to a Wi-Fi access point, which could be the antenna on the back of your home internet router or a Wi-Fi antenna in a café. It then travels over wired cables to a gateway device operated by your broadband internet provider. From there, the query finds its way across multiple wired links to Google’s server. The response comes back through a similar path in reverse.

Wi-Fi devices made by different companies can talk to each other. This is because they follow a common set of rules called the 802.11 standards, published by the Institute for Electrical and Electronic Engineers, the IEEE. These rules specify how 0’s and 1’s are represented using radio waves and how devices identify themselves. They also specify an algorithm for how and when to talk, called carrier-sense multiple access, or CSMA.

The key to making Wi-Fi practical is in how it juggles multiple people using it at once. - Image Credit: Lakyshutter via Shutterstock / HDR tune by Universal-Sci

The key to making Wi-Fi practical is in how it juggles multiple people using it at once. - Image Credit: Lakyshutter via Shutterstock / HDR tune by Universal-Sci

CSMA makes Wi-Fi devices both polite and smart. They always listen before they talk, to check that no other nearby devices are transmitting. To further minimize talking at the same time, they roll dice to pick random times to transmit. And when there are more devices around, they speak less often. All of this happens too quickly to notice.

Fast, but not always strong

You may sometimes have trouble connecting to a Wi-Fi access point. Here is why: Radio signals get weaker with distance. Thick walls, metal shelves, and even an aquarium can weaken and obstruct radio waves. If the signal gets too weak, there is poor or no communication. If there are too many Wi-Fi networks nearby, they may also interfere with your link.

Several improved versions of Wi-Fi have emerged since it first appeared in the mid-1990s. Its maximum data rate – several billion bits per second – is now more than a thousand times higher than the earliest version. This is why we can have video conference calls over Wi-Fi today.

Emerging applications like virtual reality gaming demand ever-higher download speeds, they are likely to drive even further improvements in Wi-Fi.
